PD 100W Bidirectional fast Charger Power Bank module Boost Buck 2S 3S 4S 5S 6S Battery charging-discharging Li ion Lifepo4 BMS
SPECIFICATIONS
Boost Buck 2S 3S 4S 5S 6S Battery charging-discharging: PD 5V 9V 12V 15V 20V INPUT OUTPUT
Brand Name: DYKBmetered
Certification: NONE
Choice: yes
DIY Supplies: Electrical
Data Record: No(AE存量)********
Electronic: No(AE存量)********
High-concerned chemical: None
Model Number: PD3.1 100W Bidirectional fast Charger Power Bank module
Origin: Mainland China
Output Voltage: Li ion Lifepo4 BMS Charger TYPE-C USB
PD3.1 100W Bidirectional fast Charger Power Bank module: Li ion Lifepo4 BMS Charger TYPE-C USB
Size: UFCS/PPS/PD3.1/SVOOC/VOOC/SCP/FCP/QC/AFC/PE/SFCP/BC1.2.
Style: PD 5V 9V 12V 15V 20V
Type: Boost Buck 2S 3S 4S 5S 6S Battery charging-discharging
semi_Choice: yes

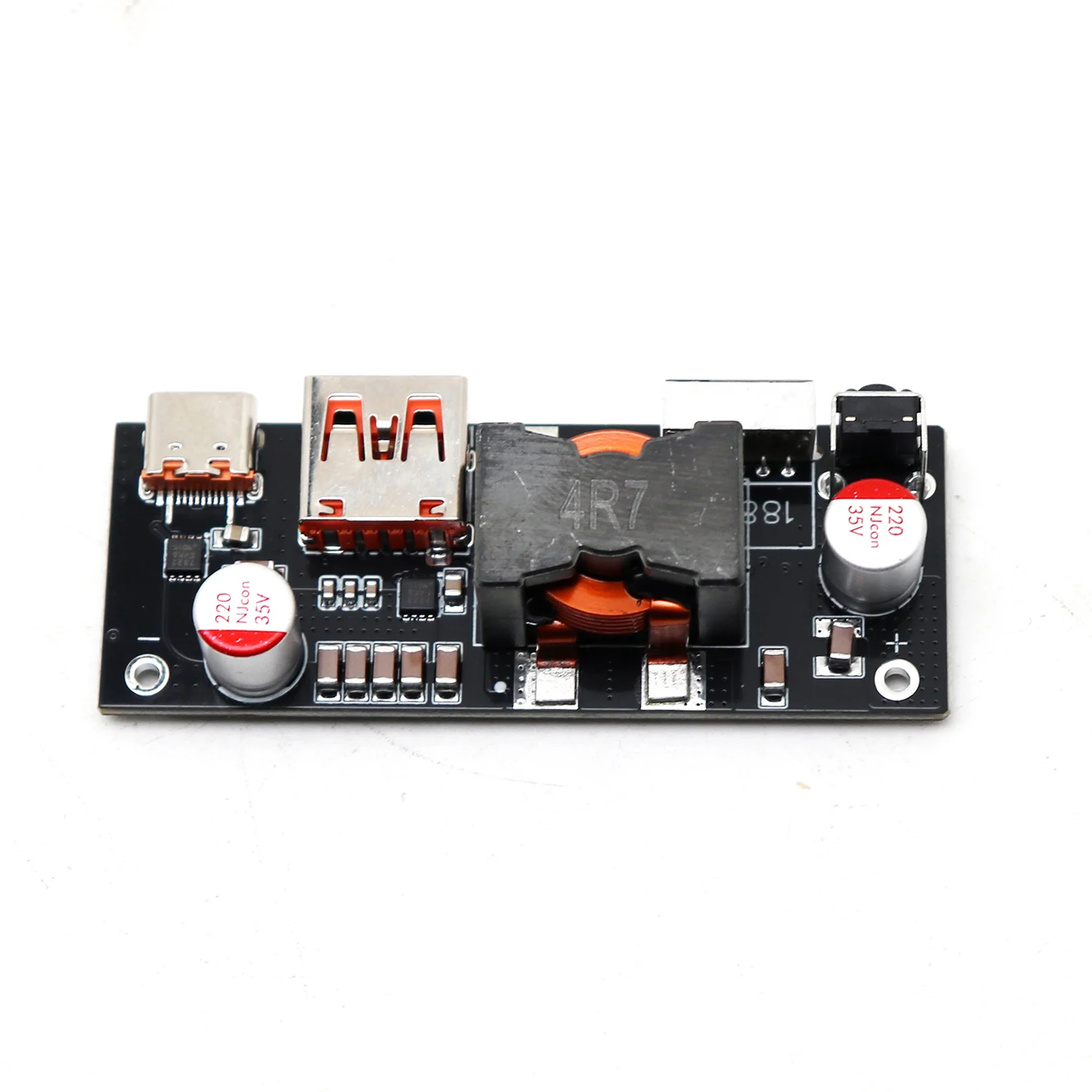

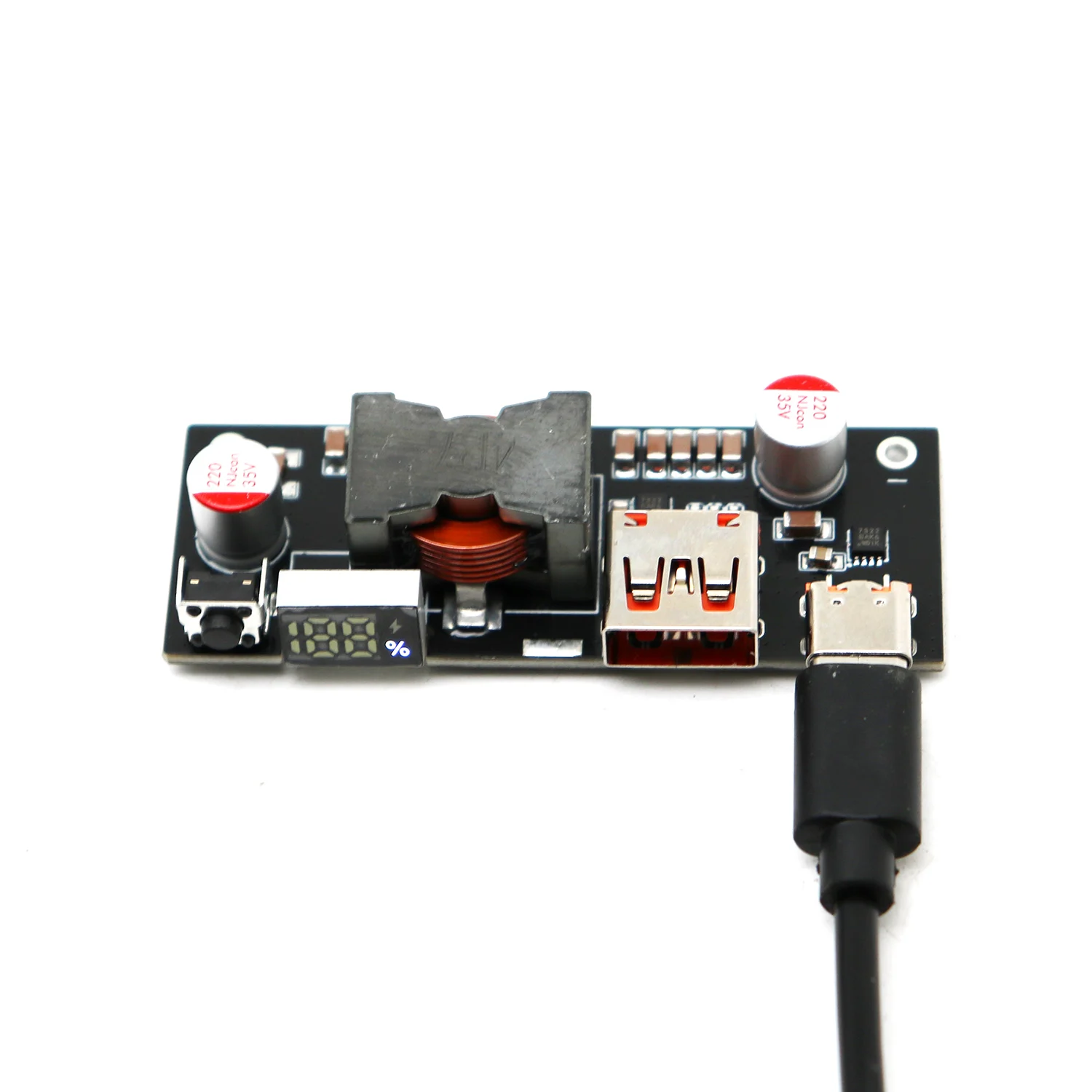

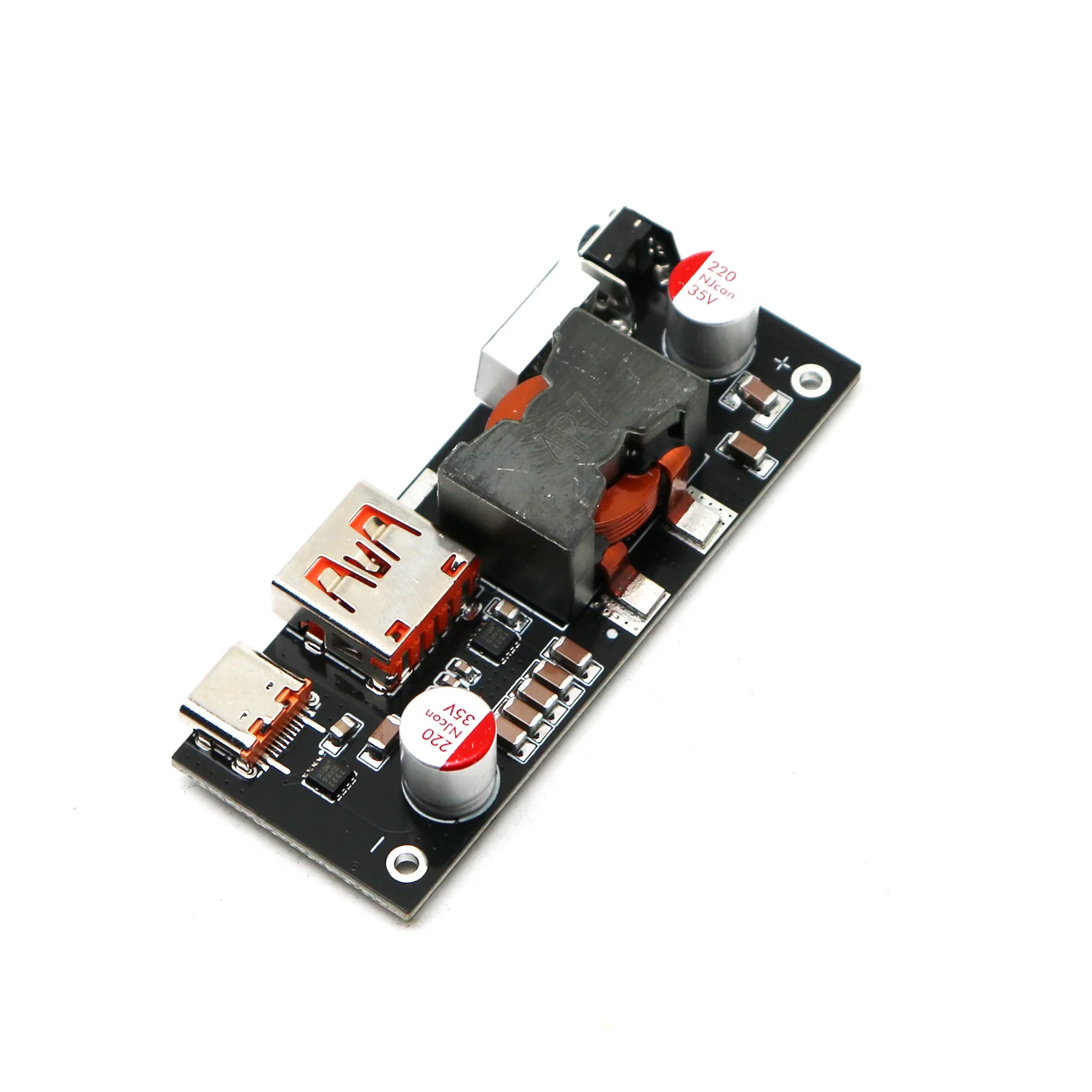

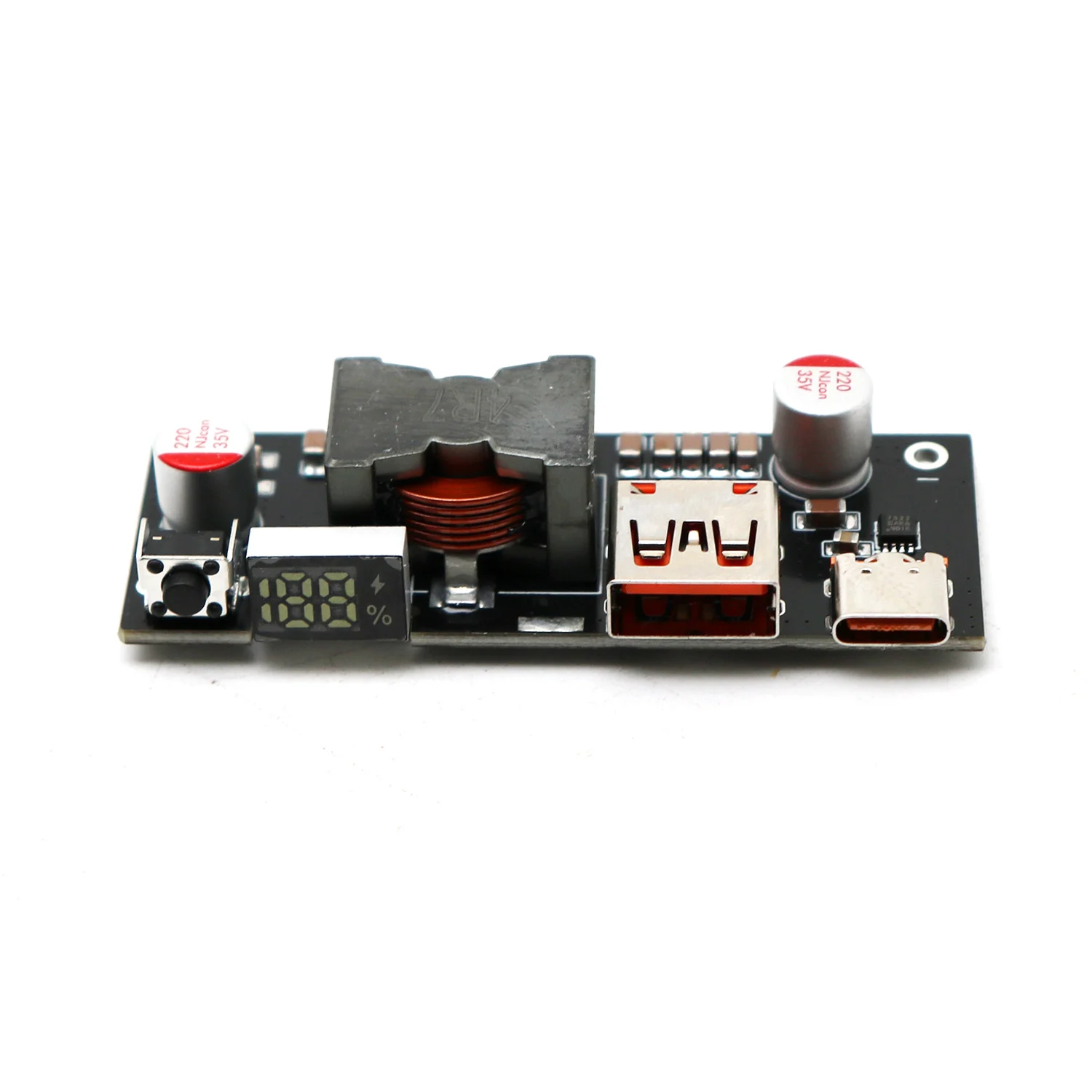

100W bidirectional fast charging Power Bank module 2S 3S 4S 5S 6S Lithium Battery PD Quick Charge Li ion Lifepo4 BMS Charger TYPE-C USB

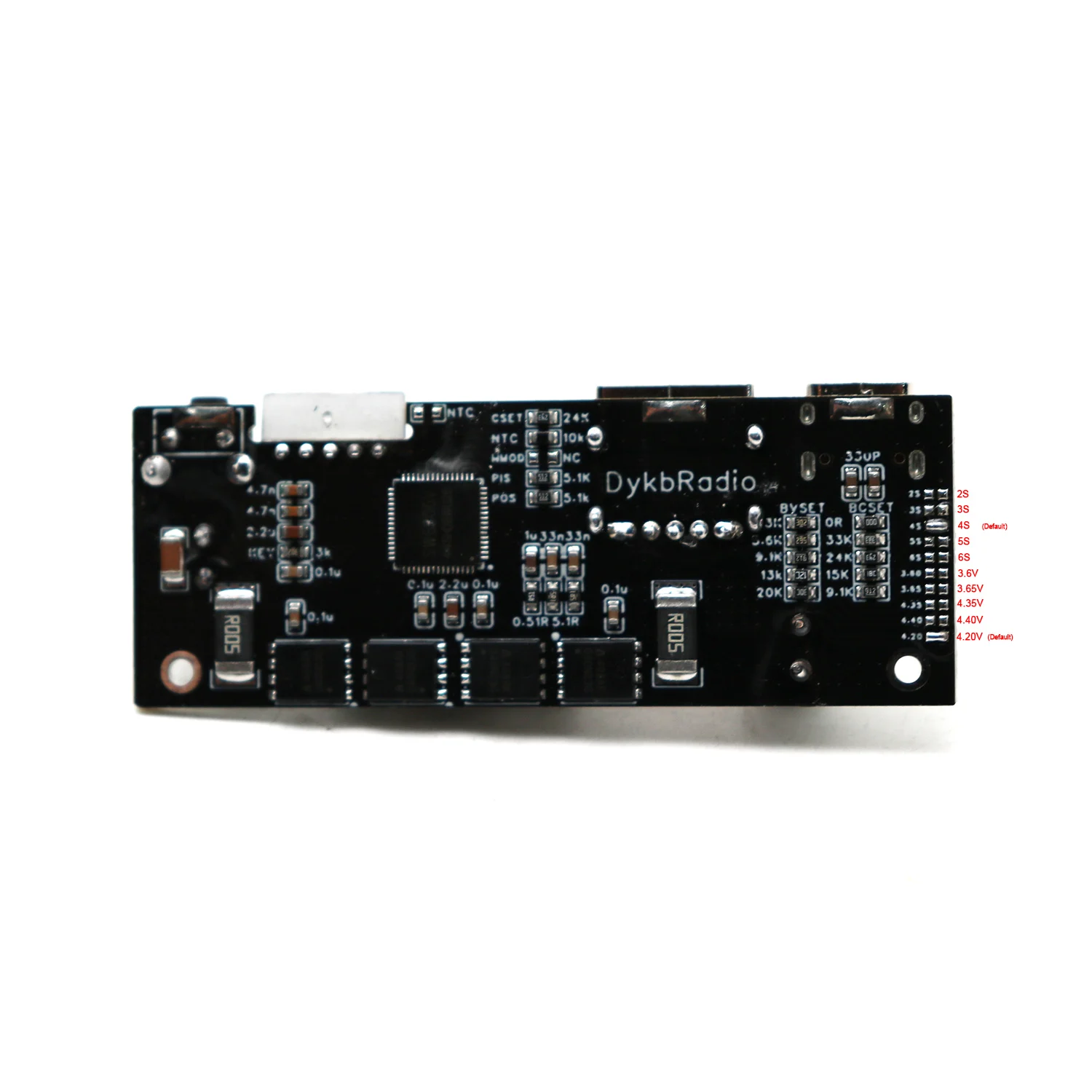

Default 4S Li-ion Supports 2S 3S 4S 5S 6S LiFePO4 (3.65V/cell) & Ternary Li-ion (4.2V/cell) (Select battery type by short-circuiting designated pads）

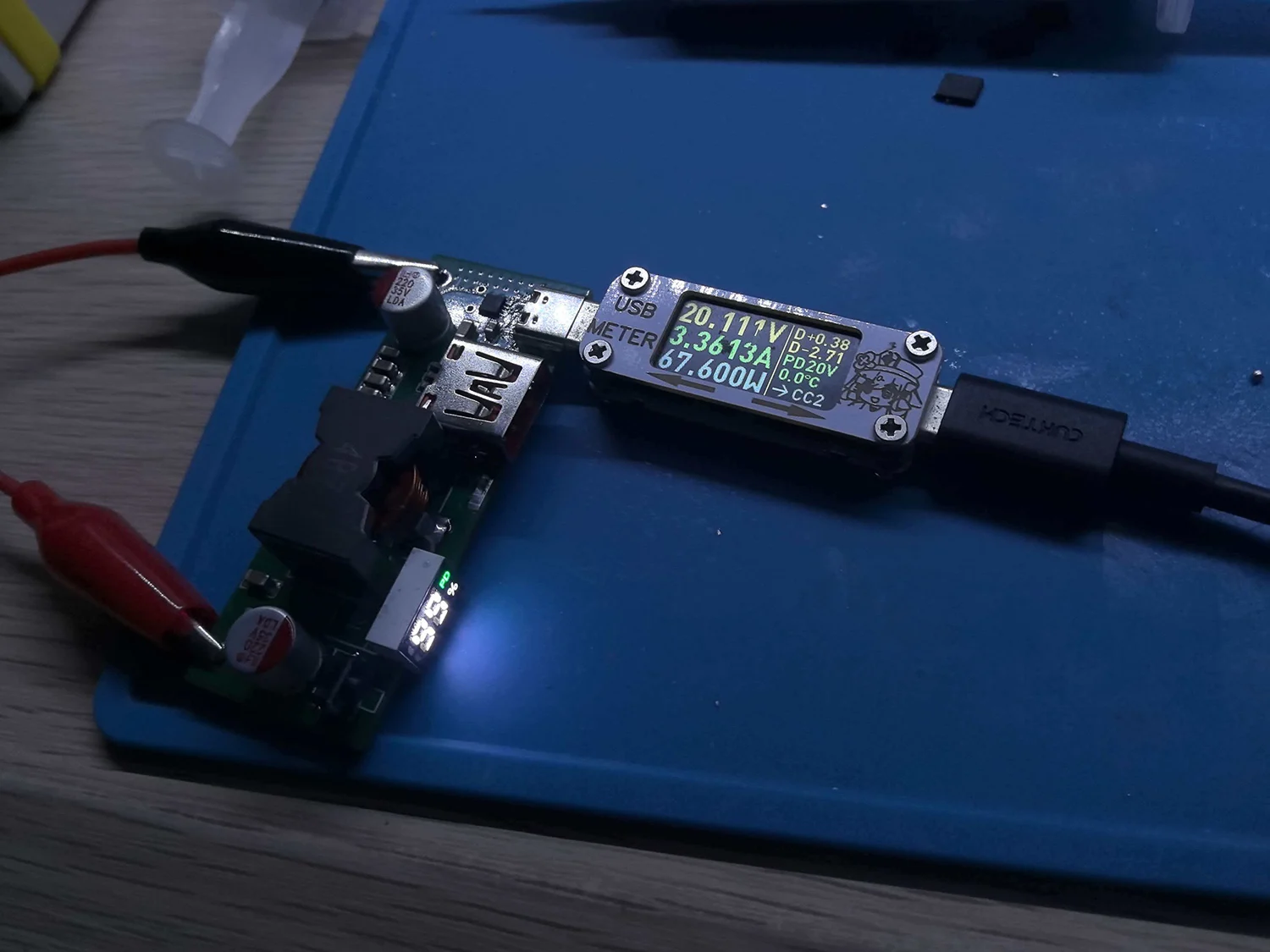

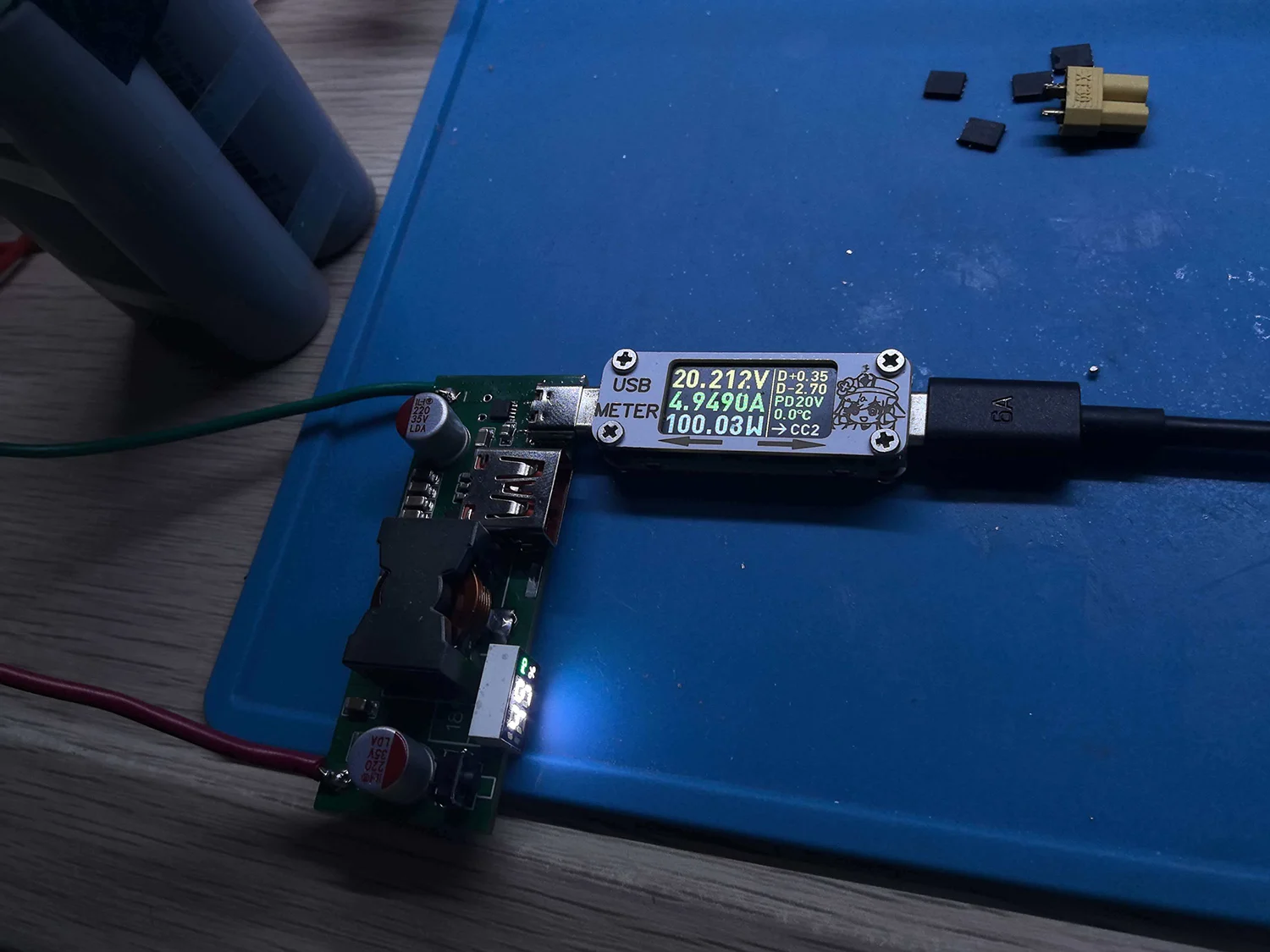

2S MAX 30W/3S MAX 45W/4S MAX 100W/5S MAX 100W/6S MAX 100W
Key Features
Highly Integrated Design: Combines bidirectional buck-boost controller, supports 2-6 series batteries, and delivers up to 100W input/output power.
2-Port Flexible Charging: Supports fast charging via USB-A + USB-C ×2 (any port).
Wide Protocol Compatibility:
UFCS/PPS/PD3.1/SVOOC/VOOC/SCP/FCP/QC/AFC/PE/SFCP/BC1.2.
Technical Specifications
Dimensions: 68mm × 2.5mm × 1.4mm.
Input/Output Voltage: DC 5–20V (wide compatibility).
Certification: PD3.1 DRP Certified (TID:10710).
Supported Fast Charging Protocols
Protocol |
Input/Output |
Voltage/Current |
PD3.1 |
Input/Output |
Up to 100W (20V@5A, 3.3–21V@5A) |
UFCS |
Input (60W)/Output (100W) |
Input: 20V@3A; Output: 3.4–21V@5A |
QC |
QC3+/QC3.0/QC2.0 |
QC2.0: 5/9/12/20V; QC3.0: 3.6–20V (200mV/step); QC3+: 3.6–20V (20mV/step) |
FCP |
Input/Output |
5/9/12V |
SCP |
Input/Output |
Input: 5/9/10/12V; Output: 3.3–12V |
AFC |
Input/Output |
5/9/12V |
PE |
PE2.0/PE1.1 Output |
PE2.0: 5–12V (500mV/step); PE1.1: 5/7/9/12V |
SFCP |
Output |
5/9/12V |
Protection Mechanisms
Input/Output Overvoltage Protection
Output Overcurrent/Short-Circuit Protection
Battery Undervoltage/Overvoltage Protection
NTC Temperature Protection
Die Overheat Protection
Charging Timeout Protection
Efficient Buck-Boost Discharge
Adjustable Output Power: Up to 100W via external PIN configuration.
Precision Voltage Control: 3.3–27.3V output, 10mV step adjustment.
Current Limiting: Customize battery/load limits via I2C.
PD Peak Current Support: Compliant with PD specifications.
Smart Mode Switching: Auto-toggle between PWM and PSM based on load.
Applications
High-power portable chargers for laptops, phones, and IoT devices.
Multi-device charging stations with adaptive voltage/current.
Automotive/industrial power solutions requiring wide voltage input.
